Continuous Production Line Honeycomb Machine Honeycomb Composite
Board Continuous Production Line
1. Descriptions:
This equipment is designed for direct production of continuous
honeycomb panels, three-layer composite, and specialized production
line equipment for flat aluminum-plastic composite panels after
being laminated with aluminum coils on both sides, hot rolled and
cut.
After the aluminum composite plate is pressed along the core plate
thickness by the front pressure rolling mill, it enters the pre
composite state; Then, the polymer adhesive film and the heated
upper and lower aluminum coils are pre bonded and transferred to
the mirror wheel group. The five layers enter the rolling wheel of
the forming and leveling composite machine at the same time, and
undergo pre compounding, hot rolling, cold rolling, cooling and
shaping, and cutting to length to form a sandwich type composite
board.
Composite into sandwich shaped boards, the feedback signal from the
fixed length sensor can cause the cutting machine to automatically
clamp the boards and move them synchronously in the direction of
transportation, and then automatically return to their original
position after cutting.
Equipment components:
| Item | Name | QTY |
| 1 | Core Connection Platform | 1Set |
| 2 | Honeycomb core stretching platform | 1Set |
| 3 | Platform | 1Set |
| 4 | Pre compounding machine | 1Set |
| 5 | Oven | 2Set |
| 6 | Composite machine 1 & 2 | 2 sets, 2groups |
| 7 | Composite machine 3 | 2 sets, 4 groups |
| 8 | Aluminum coil unwinding machine (2 units each) | 4Set |
| 9 | Cooling machine | 1Set |
| 10 | Protective film laminating machine | 1Set |
| 11 | Vertical sawing machine | 1Set |
| 12 | 3 sets of synchronous drive machines | 1Set |
| 13 | Horizontal sawing machine | 1Set |
| 14 | Rear platform | 1Set |
| 15 | manipulator | 1Set |
| 16 | Mobile car | 2Set |
| 17 | Production line electrical cabinet | 1Set |
| 18 | Main console | 1Set |
| 19 | Sawing operation table | 1Set |
| | |
2. Specifications of Aluminum Honeycomb Composite Panel Continuous
Production Line:
| Color | Orange (color can be customized according to customer requirements) |
| Power supply | 380V, III, 50HZ |
| Air pressure | pressure | 5~6KGF/CM2 |
| Gas consumption | 1.0~1.2M3/MIN |
| Industrial Water | pressure | 1-4KG/CM2 |
| Water volume | 0.5-1.5M3/H |
| Size | 60M×2.4M×4.8M (L×W×H) |
| Factory requirements | 80M×20M×10M (L×W×H) (Min.) |
| Total weight | 60T |
| Production line operation direction | From left to right, from right to left (according to the actual
needs of the customer), need to 4~6workers |
3. Aluminum Honeycomb Composite Panel Continuous Production Line has several advantages:
Low running resistance
No deformation
Uniform temperature
High production efficiency
Saves labor
Reduces material waste.
4. Applications Of Aluminum Honeycomb Composite Board Continuous Production Line :
It is suitable for aluminum honeycomb panel, Honeycomb board
continuous production line.
5. Quality control:
A very technical engineering team. The general manager has worked
in the Netherlands. The core technologies are introduced from the
Netherlands. Others are very young and have more than 5 years of
practical experience.
Strict QC team: 8 people are responsible for honeycomb panel
equipment of quality control of parts, processing, testing,
packaging, etc.
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, was founded in 1957. It
is the world's leading professional manufacturer of honeycomb
materials. Since it' s established, the company has been committed
to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was
using honeycomb panel as the solution, such as truck body, laser TV
/ projection screen etc.

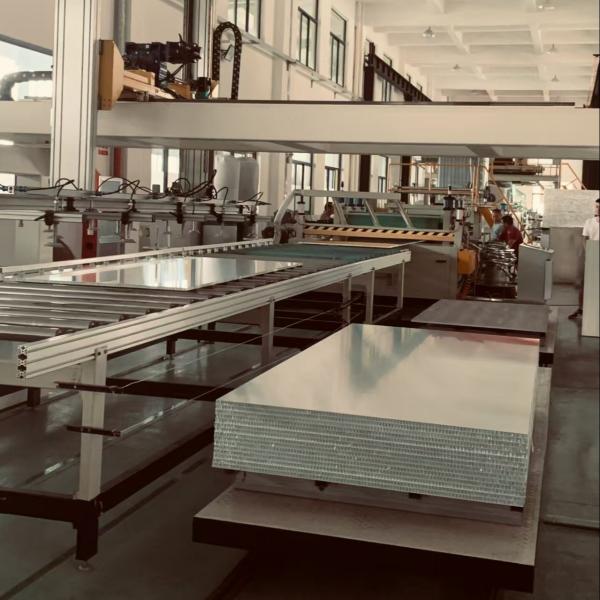

7. Production picture
8. FAQ
Q1. What is aluminum honeycomb panel continuous production line
honeycomb panel equipment usd for?
A: The aluminum honeycomb panel continuous production line has been
widely used in aluminum honeycomb panel.
Q2. What are the advantages of aluminum honeycomb panel continuous production line honeycomb panel equipment?
A:The aluminum honeycomb panel continuous production line honeycomb panel equipment is high efficiency and low cost.
Q3. What is the packaging method of aluminum honeycomb panel continuous production line?
A: Packed in plywood cases with wrapping film
